Introduction
Kirchhoff’s Current Law (KCL) explains how electric current behaves at a junction in an electrical circuit. This rule stands on the idea of charge balance inside a conductive network. When several wires meet at one point currents move through that node without storing charge. The principle called Kirchhoff’s Current Law (KCL) states that the total current entering a node equals the total current leaving the same node. Engineers students and technicians apply this rule while studying circuits building devices and solving current paths in power systems. Clear understanding of Kirchhoff’s Current Law (KCL) helps readers analyze nodes safely and correctly.
What is Kirchhoff’s Current Law?
Kirchhoff’s Current Law describes the behavior of electric charge at a node where conductors meet in a circuit. A node means a junction point that links two or more branches. Electric current carries moving charge through each path. Since charge cannot vanish or collect at the node the currents must stay balanced at that location. Kirchhoff’s Current Law (KCL) states that the algebraic sum of currents at the node equals zero. This rule also means that current entering the node equals current leaving the node. The idea works for small circuits and large networks used in modern electrical systems today.
Mathematical Expression of KCL
Kirchhoff’s Current Law also appears in a short mathematical form that engineers use while solving circuits. The law often appears as ΣI = 0 which states that the total current at a node equals zero. Another useful form writes the balance as ΣIin = ΣIout where currents entering the junction equal currents leaving the junction. This compact relation helps engineers write equations during nodal analysis. Each branch current becomes a term inside the equation. When several branches meet the method still works clearly and keeps calculations simple and organized for both study and design tasks across many circuit situations daily.
Principles Behind Kirchhoff’s Current Law
Kirchhoff’s Current Law comes from the conservation of electric charge principle. In any closed system charge cannot be created or destroyed. During current flow electrons travel through conductors and reach junctions. When they arrive at the node they must leave through other branches. If extra charge stayed at the node voltage would rise and push charge away until balance returns. Because of this natural behavior Kirchhoff’s Current Law (KCL) holds true for nearly every practical electrical circuit used in laboratories homes factories and power networks. Engineers trust the rule when they examine current paths inside complex wiring structures today everywhere.
Understanding KCL with Examples
Simple Junction Example

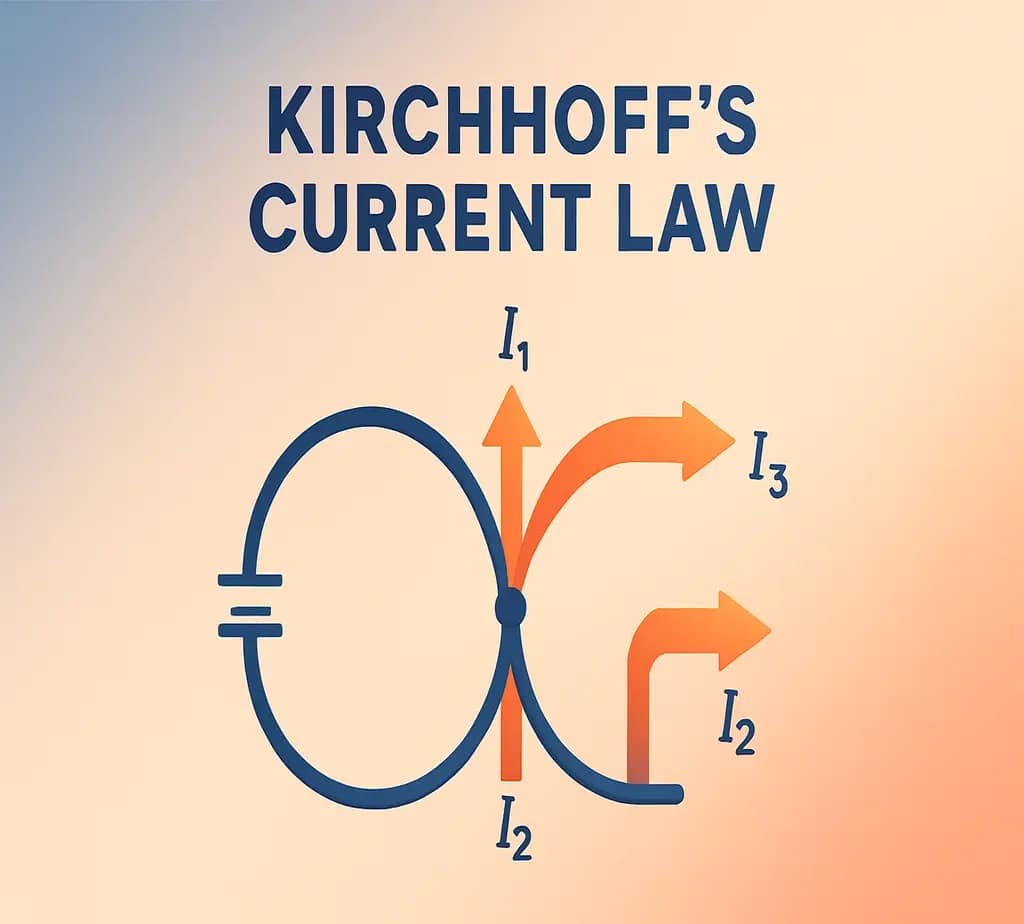

A simple junction example shows how the rule works in practice. Imagine a node where three wires connect. Current I1 = 5 A enters the node. Two other branches carry current away as I2 = 3 A and I3 = 2 A. Kirchhoff’s Current Law (KCL) states that the incoming current equals the outgoing current. The balance appears clearly as 5 A = 3 A + 2 A. If a learner assumes the wrong direction for a branch the equation gives a negative value. That sign reveals the true current direction and guides the correction of the assumption. This method keeps analysis clear and helps verify current flow in many circuit studies.
Sign Convention in KCL
Sign rules help keep equations neat when applying Kirchhoff’s Current Law (KCL). Engineers often treat currents entering a node as positive values. Currents leaving the node receive negative signs. This simple choice creates a clear algebraic relation such as +I1 + I2 − I3 − I4 = 0. When solving the equation the result may appear negative. That outcome means the real current flows opposite to the chosen direction. The sign rule does not change the physics of the circuit. It only guides the math used during analysis. Students and engineers follow one consistent sign method across all nodes always.
Applying Kirchhoff’s Current Law in Circuit Analysis
Applying Kirchhoff’s Current Law in circuit analysis follows a clear process. First identify every node in the network. Next label each branch current and assume a direction for that current. After labeling write the KCL equation at the chosen node. Include every current that enters or leaves that point. The equation forms an algebraic relation among the unknown currents. Repeat the same step for other nodes until enough equations exist. Then solve the system using algebra substitution or matrix methods. This structured approach allows engineers to handle large circuit problems with logical steps and clear results during design and study.
Nodal Analysis Method
The method of nodal analysis relies heavily on Kirchhoff’s Current Law (KCL). Engineers choose one node as a reference called ground. That node has zero voltage. Other node voltages become unknown values. Currents through resistors depend on voltage difference between nodes. Using Ohm’s law each branch current becomes an expression with node voltages. After writing KCL equations for every node the engineer solves the voltage values. Once node voltages appear branch currents become easy to compute. This technique helps analyze amplifiers power supplies sensor circuits and many other electronic systems used in labs and modern technology fields today widely everywhere.
Practical Example: Household Electrical Circuit
Kirchhoff’s Current Law also guides everyday electrical wiring in homes. Imagine a breaker line sending ten amperes toward a junction inside a distribution box. Two branch circuits leave that point. One branch powers lights and draws six amperes. Another branch feeds outlets and draws four amperes. The node stays balanced because the entering current equals the leaving currents. The relation appears as 10 A = 6 A + 4 A. Electricians use this idea while planning safe wiring layouts. The rule confirms that the supply current matches the total load current inside household systems used every day in many buildings around the world.
Visual Representation of Current Flow
Visual tools also help readers understand current balance at a node. Tables show branch paths and current values clearly. A simple table may list each branch direction and current magnitude. When learners read the data they can compare the incoming and outgoing currents quickly. This visual check supports the equation from Kirchhoff’s Current Law (KCL). If totals match the rule stands verified. If numbers differ an error exists in measurement or assumption. Such tables appear in textbooks lab reports and training guides. They strengthen learning and help confirm node balance during circuit study and analysis across classes and labs daily.
| Branch | Current Direction | Current (A) |
|---|---|---|
| Branch 1 | Into Node | 3 A |
| Branch 2 | Out of Node | 1 A |
| Branch 3 | Out of Node | 2 A |
Applications of Kirchhoff’s Current Law
Kirchhoff’s Current Law supports many tasks in electrical engineering. Designers apply it when building analog circuits digital logic boards and sensor systems. Amplifier stages often connect several resistors and transistors at one node. Engineers write KCL equations to predict current flow before hardware assembly. The rule also guides power distribution design. Substations feeders and loads meet at nodes inside the grid. Balanced currents help keep conductors within safe limits. During troubleshooting technicians inspect node currents to locate faults. This broad use keeps Kirchhoff’s Current Law essential in education industry and research work across many modern electrical systems around the world.
Limitations of Kirchhoff’s Current Law
Despite its wide use Kirchhoff’s Current Law (KCL) has limits. The law assumes circuits contain lumped elements such as resistors capacitors and wires where current paths remain well defined. At very high frequency electromagnetic fields spread through space around conductors. Energy may store briefly in electric and magnetic fields near the node. Under those extreme conditions the simple node equation may need support from field theory. Even then engineers still treat many practical systems with the basic KCL approach because everyday power electronics and control circuits operate at frequencies where the node rule remains accurate and useful in practice today.
Educational Importance
Education programs use Kirchhoff’s Current Law as a first step into circuit reasoning. Students begin with small junction problems that show how currents split and combine. Teachers guide learners to write node equations and solve them step by step. This practice builds skill in algebra logic and physical thinking. As exercises grow larger students gain confidence analyzing real networks used in devices labs and power systems. Clear knowledge of Kirchhoff’s Current Law (KCL) gives a strong base for later topics such as network theorems amplifier design signal study and system modeling across electrical engineering courses around many universities worldwide today.
Conclusion
Kirchhoff’s Current Law (KCL) remains one of the most useful ideas in circuit analysis. The rule states that currents entering a node equal currents leaving that node. This clear relation grows from the conservation of electric charge. Engineers apply Kirchhoff’s Current Law (KCL) while studying circuits designing electronics building power networks and repairing equipment. From small classroom examples to vast power grids the same node balance principle guides accurate reasoning. Learning this rule gives readers a strong base for deeper electrical study and confident circuit problem solving across modern engineering practice today and in future systems around the world everywhere.
