Kirchhoff’s Voltage Law (KVL)

Introduction

Kirchhoff’s Voltage Law (KVL) explains how voltage behaves when electrical energy moves around a closed circuit path. Every electrical loop forms a path where energy travels from a power source through various components and returns to the starting point. Kirchhoff’s Voltage Law (KVL) states that the sum of all voltages in that loop must equal zero because energy supplied by sources must match energy used by loads. This simple rule helps learners analyze circuits clearly and predict voltage levels across components. Engineers rely on Kirchhoff’s Voltage Law (KVL) while studying electronic systems, power networks, and control devices in many technical fields.

What is Kirchhoff’s Voltage Law?

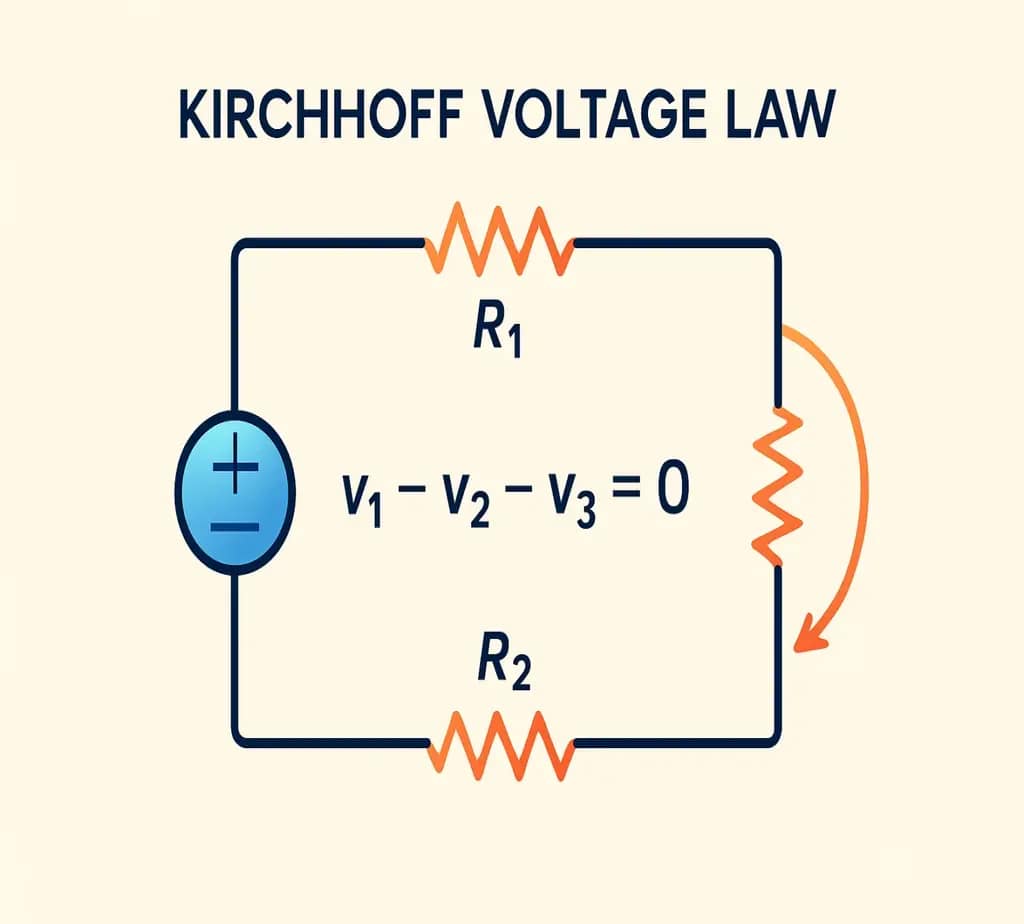

Kirchhoff’s Voltage Law describes the balance of electrical potential within a closed loop of a circuit. A loop is a path that begins at one point and returns to the same point after passing through circuit components. The rule states that the algebraic sum of all voltages in that loop equals zero. Voltage supplied by batteries or power sources becomes equal to the voltage used across resistors, lamps, motors, and other loads. This relationship exists because electrical energy must remain balanced in the loop. Kirchhoff’s Voltage Law (KVL) allows engineers and students to understand how voltage distributes across components during circuit operation.

Why Closed Loops Matter

Closed loops play a key role in electrical circuits because they form the complete path for current flow. When a loop exists, current can travel from the power source through wires and components before returning to the source. Each device in that path uses part of the supplied energy. Voltage drops appear across components such as resistors and lamps as energy converts into heat or light. Kirchhoff’s Voltage Law (KVL) ensures that the total energy supplied equals the total energy used along the loop. Without a closed loop current cannot move and voltage balance cannot exist.

Mathematical Expression of KVL

Kirchhoff’s Voltage Law also appears in mathematical form so engineers can solve circuit problems easily. The most common expression is written as ΣV = 0. This equation means that when every voltage rise and drop around a loop is added together the result becomes zero. Another equivalent form shows the relationship between voltage sources and voltage drops across loads. In this form engineers write ΣV_rise = ΣV_drop. These simple expressions allow students and engineers to develop loop equations and calculate unknown voltages in complex circuits.

• V_rise = voltage sources
• V_drop = voltage drops across circuit elements

Understanding Voltage Rise and Drop

Voltage rise occurs when moving across a power source from its negative terminal to its positive terminal. A battery or generator supplies electrical energy and increases the electrical potential along that part of the loop. Voltage drop appears when current flows through circuit elements such as resistors or electronic devices. These elements consume electrical energy and convert it into other forms such as heat or light. Kirchhoff’s Voltage Law (KVL) tracks these rises and drops and confirms that the total voltage increase equals the total voltage decrease in the loop.

Principle Behind Kirchhoff’s Voltage Law (KVL)

Kirchhoff’s Voltage Law comes from the conservation of energy principle. Energy cannot disappear or appear without cause in a physical system. When electrical current travels through a circuit loop energy supplied by the source transfers to loads along the path. Each resistor lamp or motor converts electrical energy into another form. Because energy must remain balanced the voltage gained from the source equals the voltage lost across components. Kirchhoff’s Voltage Law (KVL) expresses this natural energy balance in a clear mathematical form that engineers can apply during circuit analysis.

Energy Flow in a Circuit Loop

Electrical energy moves through circuits in a continuous path that begins at a source and returns to that source. A battery pushes charge through wires using electric potential difference. As current moves through resistors or devices energy transfers to heat motion or light. Voltage gradually decreases across each component because energy leaves the electrical system at those points. Kirchhoff’s Voltage Law (KVL) confirms that the total energy leaving the source matches the energy used by the components within the loop.

Understanding KVL with a Simple Example

A simple circuit example helps illustrate the idea clearly. Imagine a circuit powered by a twelve volt battery connected to two resistors placed in series. When current flows the voltage divides between those resistors depending on their resistance values. Suppose the first resistor drops five volts and the second drops seven volts. Adding the voltage drops gives the original supply voltage. This balance demonstrates Kirchhoff’s Voltage Law (KVL).

+12 V − 5 V − 7 V = 0

This equation shows that the total voltage rise equals the total voltage drop around the loop. When the loop returns to the starting point no net voltage change remains. Engineers use this approach to solve circuits that include several resistors power sources or electronic devices.

Sign Convention in Kirchhoff’s Voltage Law

Engineers follow a clear sign convention when applying Kirchhoff’s Voltage Law in circuit analysis. The chosen direction of loop travel determines whether each voltage becomes positive or negative. When moving from the negative terminal to the positive terminal of a source the voltage counts as a positive rise. When current passes through a resistor in the direction of travel the voltage becomes a negative drop. Using consistent signs ensures accurate equations and prevents confusion when solving loop problems.

• Voltage rise is treated as positive
• Voltage drop is treated as negative

If the final answer for voltage becomes negative it indicates that the assumed direction of current or loop travel was opposite to the actual direction. This result helps engineers identify the correct orientation of voltage drops and currents.

Step-by-Step Procedure to Apply KVL

Engineers follow several organized steps when applying Kirchhoff’s Voltage Law to analyze circuits. The process begins by identifying a closed loop within the circuit diagram. A direction of travel around the loop is chosen to maintain consistent sign usage. Each component voltage is then assigned a positive or negative value according to the sign convention. After identifying every voltage rise and drop engineers write the loop equation using ΣV = 0. Solving the equation reveals unknown voltages or currents in the circuit.

1. Select a closed loop in the circuit
2. Assume a direction for loop current
3. Traverse the loop in the assumed direction
4. Assign voltage rises and drops using sign convention
5. Apply KVL: ΣV = 0
6. Solve the equation to find unknown values

Loop Analysis Concept

Loop analysis uses Kirchhoff’s Voltage Law to study each independent path within a circuit. In complex networks several loops share components such as resistors or power sources. Each loop produces its own equation describing voltage relationships along that path. Engineers solve the group of equations together using algebraic methods or computer tools. This approach allows accurate analysis of circuits containing many interconnected elements.

Applications of Kirchhoff’s Voltage Law

Kirchhoff’s Voltage Law plays a central role in electrical engineering and electronics. Designers apply the rule while building power supplies, signal amplifiers, and digital circuits. The law ensures that voltage divides correctly across resistors and electronic components so devices operate safely. Electrical engineers also use KVL when analyzing distribution lines and power generation systems. The rule supports troubleshooting because incorrect voltage distribution often reveals faults in wiring or equipment.

• Loop or mesh analysis
• Series circuit voltage calculations
• Electronic circuit design
• Power supply and amplifier analysis
• Electrical power system study

Engineers rely on this principle during circuit design to verify that voltage values remain within safe limits for each component. Proper voltage balance prevents damage and improves device reliability.

Practical Example: Series Circuit

Consider a simple series circuit powered by a ten volt source. Three resistors are connected in a single path forming a closed loop. When current flows voltage divides across the resistors according to their resistance values. Suppose the first resistor drops two volts the second drops three volts and the third drops five volts. Adding these drops equals the original supply voltage. This relationship confirms the energy balance within the loop.

10 V = 2 V + 3 V + 5 V

This example demonstrates how Kirchhoff’s Voltage Law allows engineers to predict voltage distribution in a circuit before building the actual hardware. Accurate prediction helps avoid component failure.

Kirchhoff’s Voltage Law in AC Circuits

Kirchhoff’s Voltage Law also works in alternating current systems. In AC circuits voltage and current change continuously with time. Engineers represent these changing values using phasor diagrams and complex numbers. Inductors and capacitors create phase differences between voltage and current which adds complexity to analysis. Even with these variations the total phasor voltage around a loop still equals zero. This confirms that energy balance still holds in AC networks.

Limitations of Kirchhoff’s Voltage Law

Kirchhoff’s Voltage Law assumes that circuit elements behave as lumped components where voltage drops occur at distinct locations. At extremely high frequencies electromagnetic effects spread through space around conductors. In such situations the simple loop equation may not represent energy transfer accurately. Engineers may then use electromagnetic field theory to analyze voltage and energy distribution.

• Assumes lumped circuit elements
• Less accurate at very high frequencies
• Does not consider electromagnetic radiation losses
• Not valid in circuits with time-varying magnetic fields

Most electrical systems operate within ranges where these limitations do not affect results significantly. This is why Kirchhoff’s Voltage Law remains widely used in practical engineering.

Difference Between KVL and KCL

This comparison highlights how the two Kirchhoff laws complement each other during circuit analysis. One focuses on voltage balance while the other examines current distribution at nodes.

Conclusion

Kirchhoff’s Voltage Law (KVL) explains how voltage balances within closed electrical loops and reflects the conservation of energy principle. Every voltage rise supplied by a source equals the total voltage drop across components in the loop. Engineers apply Kirchhoff’s Voltage Law (KVL) while designing circuits analyzing electrical networks and diagnosing faults in equipment. The law provides a reliable framework for understanding voltage distribution in both simple devices and large power systems. Mastering Kirchhoff’s Voltage Law (KVL) strengthens circuit analysis skills and supports safe efficient electrical system design.
