Introduction
The treatment of hard water or softening of water improves water quality in both homes and industrial systems by removing unwanted minerals that affect performance and usability. Hard water contains dissolved calcium and magnesium salts that enter water as it passes through soil and rock layers. These minerals create deposits inside pipes, heaters, and boilers, which reduces efficiency over time. Water softening methods remove these unwanted minerals before water reaches equipment, and this leads to smoother operation and longer service life. Clean water also improves daily activities such as washing, bathing, and cleaning tasks. Soap works better in soft water and produces more lather, which reduces waste and saves effort. Engineers use a range of techniques to remove hardness from water supplies, and these include chemical reactions, filtration, and ion exchange systems. Each method plays a key role in protecting systems and improving water usability in different conditions.
Understanding Hard Water Problems
Hard water forms when groundwater moves through mineral rich soil and rock layers and dissolves calcium and magnesium compounds. These minerals enter water naturally and create hardness that affects both domestic and industrial use. Temporary hardness occurs due to bicarbonate salts that can break down with heat, while permanent hardness forms due to sulphates and chlorides that remain stable even after boiling. Each type of hardness needs a suitable method for removal. The presence of these minerals changes the chemical nature of water and affects how it reacts with cleaning agents and surfaces. Over time, untreated hard water creates issues that reduce efficiency and increase maintenance needs in many systems.
Common Effects of Hard Water
Hard water creates scale deposits inside pipelines and heating equipment, and this scale builds slowly on inner surfaces. The layer acts as an insulator and reduces heat transfer efficiency in systems such as boilers and heaters. Equipment uses more energy to maintain the same output, which increases fuel consumption and operating costs. In homes, soap reacts with calcium and magnesium ions and forms sticky deposits known as soap scum. This reduces cleaning efficiency and requires more soap for washing. Clothes washed with hard water feel rough and look dull because mineral particles remain trapped in fabric fibers. Over time, these effects reduce comfort and increase wear on materials.
Impact on Industrial Systems
Industrial systems face serious issues due to hard water, especially in boilers, cooling towers, and pipelines. Scale formation reduces flow rates and increases pressure within pipes, which may lead to damage or failure. Pumps and valves may not function properly due to mineral deposits. Heating systems lose efficiency, and fuel use rises as equipment works harder to maintain temperature. Maintenance costs increase due to frequent cleaning and repairs. Industries depend on reliable water quality to maintain safe and efficient operations, so proper treatment becomes essential. Engineers design systems with water softening processes to reduce these risks and ensure smooth performance.

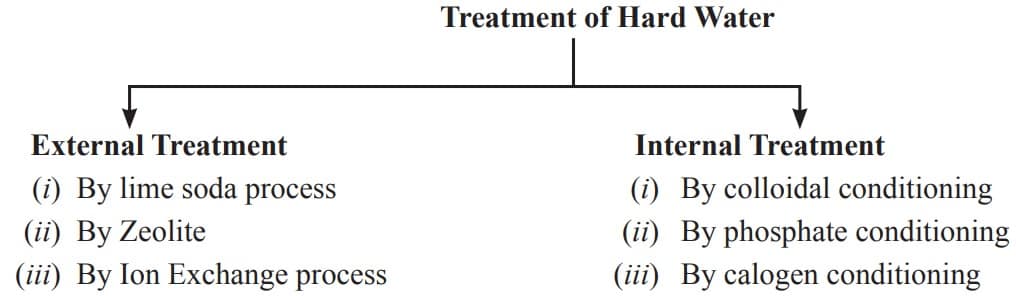

Methods for Treatment of Hard Water or Softening of Water
The hardness producing salts can be removed from water by following two method. Each method treats hardness at different stages of water use and supports safe and efficient operation in various systems. These approaches allow flexibility in design and application depending on water quality and usage needs. The treatment of hard water or softening of water remains essential for both domestic and industrial applications.
- By External Treatment
- By Internal Treatment
External Treatment of Hard Water
External treatment removes hardness before water enters boilers or industrial systems, and this prevents scale formation inside equipment. Water becomes suitable for heating and industrial use after treatment. Several methods exist for external softening, including the lime soda process, zeolite process, and ion exchange systems. These methods convert soluble salts into insoluble particles that can be removed through sedimentation and filtration. Clean water remains after the removal of sludge. External treatment improves water quality and protects equipment from corrosion and scaling. This method reduces maintenance needs and increases system reliability.
Lime Soda Process
The lime soda process works as a chemical method that removes hardness by converting dissolved salts into insoluble precipitates. These precipitates settle at the bottom of treatment tanks during sedimentation. Filtration removes the remaining particles and produces soft water suitable for industrial use. This method suits large scale treatment plants where continuous operation is required. Engineers calculate the required amount of chemicals based on water composition. The process improves clarity and reduces mineral content effectively. It remains one of the most widely used techniques in water treatment systems.
Lime Removes Temporary Hardness
`Ca(hco_3)_2+Ca(oh)_2rightarrow2Caco_3+2h_2o`
`Mg(hco_3)_2+2Ca(oh)_2rightarrow2Caco_3+2h_2o +Mgleft(ohright)_2`
These reactions convert bicarbonate salts into insoluble calcium carbonate and magnesium hydroxide. The precipitates settle at the bottom and can be removed easily. This process removes temporary hardness and improves water quality for further use. The reaction also reduces alkalinity and stabilizes water chemistry.
Lime Removes Permanent Magnesium Hardness
`Mgcl_2+Caoh_2rightarrow Mgleft(ohright)_2+Cacl_2`
`Mgso_4+Caoh_2rightarrow Mgleft(ohright)_2+Caso_4`
Magnesium salts convert into magnesium hydroxide sludge during these reactions. The sludge settles and can be filtered out. This process reduces permanent hardness caused by magnesium salts. It also prepares water for further treatment stages.
Lime Removes Dissolved Iron and Aluminium Salts
`Feso_4+Caoh_2rightarrow Feleft(ohright)_2+Caso_4`
`2Feleft(ohright)_2+H_2o +orightarrow2Feleft(ohright)_3`
`Al_2left(so_4right)_3+3Caleft(ohright)_2rightarrow2Alleft(ohright)_3+3Caso_4`
These reactions remove metal impurities by forming insoluble hydroxides that settle out of water. Iron and aluminium removal improves clarity and reduces staining problems in water systems.
Lime Removes Free Mineral Acids
`2Hcl+Caleft(ohright)_2rightarrow Cacl_2+2H_2o`
`H_2so_4+Caleft(ohright)_2rightarrow Caso_4+2H_2o`
Lime neutralizes acidic components in water and protects pipes from corrosion. Neutral water supports safe operation and extends equipment life.
Lime Removes Dissolved Gases
`Caleft(ohright)_2+Co_2rightarrow Caco_3+H_2o`
`Caleft(ohright)_2+H_2srightarrow Cas+2H_2o`
These reactions remove gases that cause corrosion and odor. The treatment improves overall water quality and stability.
Soda Removes Soluble Calcium Permanent Hardness
`Cacl_2+Na_2co_3rightarrow Caco_3+2Nacl`
`Caso_4+Na_2co_3rightarrow Caco_3+Na_2so_4`
Soda converts soluble calcium salts into insoluble calcium carbonate, which settles as sludge. This step reduces permanent hardness and completes the softening process.
Internal Treatment of Hard Water
Internal treatment adds chemicals directly into boiler water to control scale formation. These chemicals convert scale forming salts into loose sludge that remains suspended in water. Blowdown operations remove this sludge at regular intervals. Internal treatment works as a secondary step after external softening. It removes any remaining hardness that enters the boiler. This approach protects internal surfaces and maintains efficiency.
Carbonate Conditioning
This method uses sodium carbonate to convert calcium sulphate into calcium carbonate sludge. The reaction depends on solubility conditions inside the boiler.
`Caso_4+Na_2co_3rightarrow Na_2so_4+Caco_3`
`Ca^{+2}` and `Co_3^-` must high from the solubility product of `Caco_3`
`Na_2co_3+Caso_4rightarrow Caco_3+Na_2so_4`
`Na_2co_3+2H_2 or 2Naoh+H_2Co_3`
`H_2Co_3rightarrow H_2o +Co_2` NaOH
This method suits low pressure boilers and requires control to avoid damage due to excess chemicals.
Phosphate Conditioning
Phosphate conditioning works well in high pressure boilers and forms soft sludge that does not stick to surfaces.
`3Mcl_2+2Na_3Po_4rightarrow M_3left(Po_4right)_2+6Nacl`
`2Na_3po_4+3Caco_3rightarrow{left(Ca_3po_4right)}_2+3Na_2co_3`
`2Na_2hpo_4+3Caco_3rightarrow{left(Ca_3po_4right)}_2+2Na_2co_3+co_2+h_2o`
`2Nah_2po_4+3Caco_3rightarrow{left(Ca_3po_4right)}_2+Na_2co_3+2co_2+2h_2o`
`2Napo_3+3caco_3rightarrow{left(Ca_3po_4right)}_2+Na_2co_3+2co_2`
`NaPo_3+H_2o=NaH_2Po_4`
`Na_4P_2o_7+H_2o=2Na_2HPo_4`
This method maintains proper alkalinity and keeps surfaces free from hard deposits.
Colloidal Conditioning
Colloidal substances such as starch and tannins keep particles suspended and prevent scale formation. These particles leave the system during blowdown, which keeps surfaces clean.
Calgon Conditioning
Calgon conditioning uses sodium hexametaphosphate to form soluble complexes with calcium ions.
`Na_2left[Na_4p_6o_{18}right]rightarrow2Na^++left[Na_4p_6o_{18}right]^{-2}`
`2Ca^{+2}left[Na_4p_6o_{18}right]^{-2}rightarrow4Na^++left[Ca_2p_6o_{18}right]^{-2}`
The formed complexes remain dissolved and prevent scale formation inside equipment.
Conclusion
The treatment of hard water or softening of water plays a key role in maintaining system efficiency and improving water quality in daily and industrial use. External treatment removes most hardness before water enters equipment, while internal treatment handles remaining impurities inside systems. Proper softening reduces scale formation, improves heat transfer, and extends equipment life. Clean water supports better washing, safer operation, and lower maintenance costs. Industries rely on effective water treatment to maintain consistent performance and protect valuable systems. With the right methods in place, water becomes a reliable resource that supports long term use and efficiency.
