Introduction
The Conservation Law in Aerodynamics explains how air behaves while moving around objects. Engineers apply this principle to analyze aircraft, rockets, and vehicles. These laws guide safe and efficient design in modern aerospace systems.
Aerodynamics studies the motion of air and the forces created by that motion. Engineers observe airflow around wings, fuselages, and propulsion systems. Careful analysis helps them predict lift, drag, and stability.
Three physical principles guide most aerodynamic analysis. These principles are conservation of mass, conservation of momentum, and conservation of energy. Each law describes how fluid properties behave during motion.
Engineers combine these laws with experiments and computer models. The results help predict airflow patterns and pressure fields. Accurate predictions support safer aircraft design.
Understanding the Conservation Law in Aerodynamics
The Conservation Law in Aerodynamics forms the base of fluid mechanics. These laws describe how physical quantities remain balanced in flowing air. Engineers use them to study airflow behavior.
Air behaves like a fluid when it moves around a surface. Changes in velocity, pressure, and temperature occur during motion. Conservation laws explain these changes through mathematical relations.
These laws appear in both differential and integral forms. The differential form describes changes at a point in the flow. The integral form describes behavior across a control volume.
Each conservation law focuses on a specific physical property. Mass describes how matter flows through a system. Momentum and energy describe forces and heat transfer in the fluid.
Fundamental Conservation Laws
Engineers rely on three major conservation laws during aerodynamic analysis. These principles explain how fluid properties behave in motion. Together they form the core equations of fluid dynamics.
- Conservation of Mass
- Conservation of Momentum
- Conservation of Energy
Each law describes a different aspect of airflow physics. Mass conservation tracks the amount of fluid entering and leaving a region. Momentum conservation relates forces and motion.
Energy conservation tracks heat transfer and mechanical energy changes. These laws work together to describe the full behavior of fluid flow. Engineers solve them simultaneously during analysis.
Conservation of Mass
Conservation of mass states that mass cannot be created or destroyed. Fluid entering a region must leave the region or accumulate inside it. This principle forms the continuity equation.
The continuity equation describes how density and velocity change within flowing air. It ensures that mass balance remains correct at every point. Engineers use it in nearly every fluid analysis.
In this equation density represents the amount of mass per unit volume. The velocity vector describes how quickly air moves through space. Time describes changes occurring during motion.
For steady flow conditions the equation becomes simpler. Mass flow entering a system equals mass flow leaving that system. Engineers apply this rule frequently.

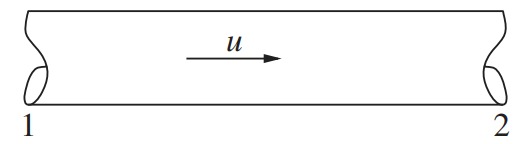

This relation applies to flow through pipes or ducts. The cross sectional area controls how fluid velocity changes. Narrow sections create faster airflow.
Aircraft inlets and wind tunnels often demonstrate this principle. Engineers adjust duct shapes to control velocity changes. This control improves aerodynamic performance.
Conservation of Momentum
Momentum conservation comes from Newton’s second law of motion. The law states that force equals the rate of momentum change. Fluid motion follows the same principle.
Air flowing around an aircraft wing changes direction and speed. These changes create forces on the aircraft structure. Engineers calculate these forces using momentum equations.
The equation includes body forces and surface forces acting on the fluid. Pressure gradients push the fluid from high pressure areas. These forces influence aerodynamic performance.
Control volume analysis helps engineers study momentum changes in pipes. Engineers calculate forces produced by fluid acceleration. These calculations support propulsion design.
The result sometimes appears negative during calculations. A negative value indicates force acting opposite to assumed direction. Engineers interpret the sign during analysis.
Air behaves as a Newtonian fluid in most aerodynamic studies. Shear stress changes linearly with velocity gradient. This property simplifies mathematical modeling.
The Navier–Stokes equations describe this momentum conservation in detail. These equations form the foundation of computational fluid dynamics. Engineers solve them using numerical methods.
Conservation of Energy
The conservation of energy states that energy cannot disappear or appear spontaneously. Energy only changes from one form into another form. Aerodynamic systems follow this rule.
Air flowing through engines or around aircraft surfaces exchanges heat and work. Mechanical energy may convert into thermal energy during friction. Engineers include these effects in energy analysis.
This equation relates pressure changes, heat transfer, and viscous effects. Enthalpy represents thermal energy contained in the fluid. Thermal conductivity controls heat diffusion.
Viscous dissipation converts mechanical energy into heat. Friction between fluid layers produces this energy conversion. Engineers account for this effect in high speed flows.
This equation applies to flow through turbines, compressors, and ducts. The term W represents mechanical work input or output. Q represents heat transfer between fluid and surroundings.
Engineers combine this law with gas property relations. The ideal gas equation helps determine temperature and pressure changes. Accurate energy analysis improves propulsion efficiency.
Role of Conservation Laws in Aerodynamic Analysis
Conservation laws guide engineers when studying aerodynamic systems. They provide a mathematical description of airflow physics. Engineers rely on them during simulation and design.
Wind tunnel experiments often verify predictions made from these laws. Engineers measure velocity and pressure fields around models. These measurements validate theoretical equations.
Computational fluid dynamics also uses conservation equations. Powerful computers solve large systems of equations across many grid points. The results reveal airflow structure around aircraft.
This approach allows engineers to predict aerodynamic forces early. Designers test different shapes through simulations. Improved shapes reduce drag and increase lift.
Applications of Conservation Law in Aircraft Design
Wing Design and Lift Generation
Aircraft wings rely heavily on conservation principles. Engineers shape airfoils to guide airflow smoothly across the surface. Pressure differences then produce lift.
Mass conservation ensures airflow continuity around the wing. Momentum conservation determines forces generated by pressure changes. Engineers balance these effects carefully.
Wind tunnel testing verifies wing performance before production. Engineers measure lift and drag using precise instruments. Results guide final wing design.
Propulsion Systems
Jet engines rely on momentum conservation to generate thrust. High speed exhaust gases push backward through the engine. The aircraft moves forward due to reaction forces.
Energy conservation governs heat release during fuel combustion. Engineers analyze pressure and temperature changes within engine components. Proper design improves engine efficiency.
Engine inlets also rely on mass conservation. Air entering the engine must match the flow leaving through exhaust. Balanced flow improves engine stability.
Flight Control Surfaces
Control surfaces adjust airflow around the aircraft. Ailerons, elevators, and rudders create small aerodynamic forces. These forces rotate the aircraft around its axes.
Momentum changes occur when air deflects around these surfaces. The resulting force alters aircraft motion. Pilots use these controls during flight maneuvers.
Engineers analyze these effects using conservation laws. Precise calculations ensure stable and responsive control. Flight safety depends on accurate aerodynamic design.
Comparison of Conservation Laws in Aerodynamics
| Conservation Law | Main Principle | Equation Used | Importance in Aerodynamics |
|---|---|---|---|
| Conservation of Mass | Mass cannot be created or destroyed in a control volume. | `rho_1u_1A_1=rho_2u_2A_2` | Used to analyze airflow continuity in ducts, wings, and engine inlets. |
| Conservation of Momentum | Rate of change of momentum equals applied forces. | `frac{Du}{Dt}=F-frac{nabla p}rho` | Helps calculate lift, drag, and aerodynamic forces acting on aircraft. |
| Conservation of Energy | Total energy in a system remains constant. | `rhofrac{Dh}{Dt}=frac{Dp}{Dt}+nablacdotleft(knabla Tright)+phi` | Used in propulsion analysis, heat transfer, and high-speed aerodynamics. |
Conclusion
The Conservation Law in Aerodynamics forms the scientific base of airflow analysis. Mass, momentum, and energy principles describe fluid behavior during motion. Engineers apply these laws to design efficient aircraft.
Accurate understanding of these laws helps engineers predict lift, drag, and thrust. Modern aerospace design relies heavily on these principles. Simulations and experiments both depend on conservation equations.
Advances in computing allow engineers to solve these equations more precisely. Improved analysis leads to safer and more efficient aircraft. The conservation law remains essential in aerodynamics research.
