Introduction
Bandwidth in communication system is a key idea in modern links that move voice, video, and data between places. It shows how much frequency room a signal has in a channel, and it shapes speed, clarity, and reach. A clear grip on this idea helps a reader see why one line carries voice well, while one other line suits rich video or fast data.
Understanding Bandwidth in Communication System
Bandwidth in communication system means the span between the lowest and highest useful frequencies in a channel. Engineers view it as the part of the spectrum that a signal can use with fair quality. A wider span can carry more data in less time, yet it also calls for sound design and good control of noise. A narrow span can still work well, but it limits the load that the link can move.
Many people like to think of bandwidth as a road. A wide road can carry more cars at the same time, while a tight road slows the flow and can cause a jam. In a channel, the same idea holds true for bits, voice, and images. The shape of the signal, the kind of data, and the needed speed all guide the size of the band.
Why the Range Matters
The range matters because a signal is not a single tone. Real speech, music, and image data spread across many tones at once. A channel must hold each part with low loss and low harm from noise. If the band is too small, the ends of the signal get cut off and the output may sound dull, look rough, or fail to carry key facts. This is why engineers match the band to the job.
In radio work, the band may sit in hertz, kilohertz, megahertz, or gigahertz. Each zone suits a use that needs a set mix of range, power, and reach. Low bands can travel far and bend around some blocks. High bands can hold more data but may need a clear path and more care in design. This trade off guides many system choices.
Signal Shape and Data Need
Signal shape has a big role in band need. A clean speech wave has less detail than a sharp video frame, so it needs less room. A plain text link needs less than a live call, and a live call needs less than a stream with rich image detail. The more change a signal has in time, the more room it tends to need in the band.
Data need also links to how fast a source changes. A page scan, a motion clip, and a game feed all bring more detail than a voice note. The link must keep up with that pace. If the band is too tight, the system may slow down, drop bits, or turn smooth motion into a rough view. Good band size keeps the flow steady.
Simple View for New Learners
New learners can use one clear rule. More detail needs more band. Less detail needs less band. A phone call uses a small slice since speech has a set voice range. A TV feed uses much more since it must carry many image parts each second. This rule helps people see why one service runs well on a modest line, while one other service asks for a far wider one.

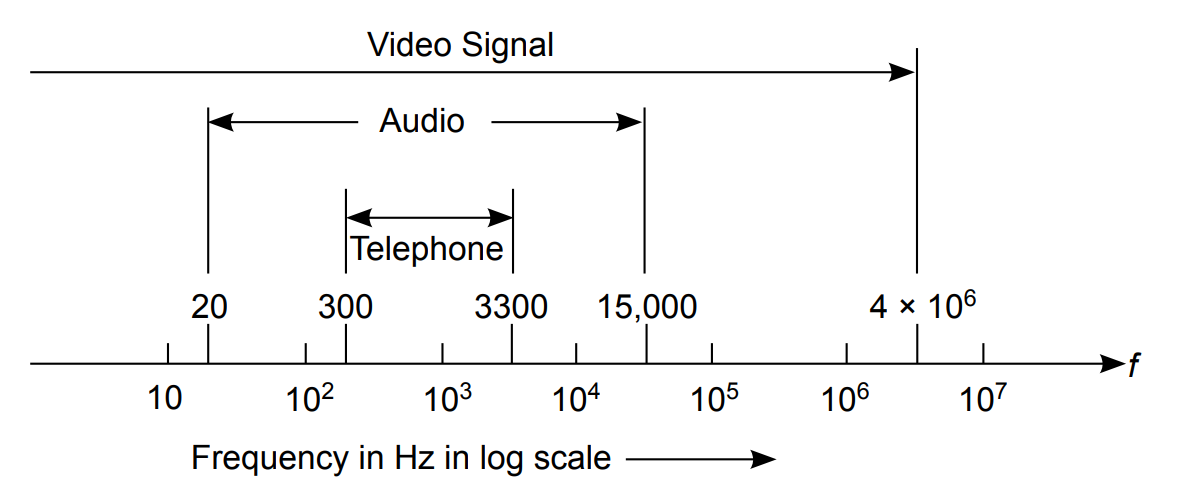

Signal Bandwidth Requirements
Each signal type has its own band need, and the need comes from the kind of data it carries. Speech, image, and fax all work in a very different way, so the band size changes too. This is why engineers do not use one fixed value for all links. They study the source, the delay limit, and the final use before they choose a band plan.
- The audio signal needs B.W. of about 20 Hz to 15 kHz for transmission.
- The video signal needs a B.W. of about 4 MHz, while a fax signal needs a B.W. of 1 kHz only. In T.V. the picture is scanned in 1/30 seconds while a FAX needs 10 minutes to scan a page.
- For a telephone, a B.W. of 300 to 3300 Hz is required.
Audio links focus on the human voice, so they keep the useful parts of speech and ignore much of the rest. That keeps the link light and clear. Video links need far more room since each frame holds many points of light and shade. Fax links move in a slow and calm way, so they can work with a much smaller slice of the band.
Voice Links
Voice links use a mid band that keeps speech clear and easy to hear. The goal is not full music grade sound. The goal is clear words, less noise, and low load on the path. This is why a telephone band can stay small and still do the job well. The user hears the main parts of speech, and the system saves room for other calls.
Image and Video Links
Video carries far more detail than speech. A moving scene has many changes from one frame to the next, so the link needs a wide band and strong speed. High detail video needs more room than low detail video. This is true in live calls, TV feeds, and stream apps. The quality set on the app can change the needed band in a very clear way.
Slow Scan Services
Fax and other slow scan links use time in a careful way. Since they send one page or one image at a slower pace, they do not need a wide band. That lets the system use less spectrum and still keep the data safe. The trade off is speed. A slow scan link can work with a small band, yet it needs more time to finish the task.
Defining Bandwidth and how it's work
Bandwidth is the gap between the low edge and the high edge of a useful signal range. In an analog link, it shows the span of the part that passes with good gain and low loss. In a digital link, it also links to the rate at which bits can move. So the term has a strong bond with both shape and speed.
Engineers use this idea to test channel skill and to pick the best medium for a task. A link with more band can often move more data, but the full result still depends on noise, coding, and delay. A smart design uses the band well, not just in a large way. That is why band plans must fit the real use and the real load.
Analog and Digital Views
In analog work, the signal takes a smooth form that rises and falls in a full wave shape. The link must pass that shape with care so that the output stays true to the input. In digital work, the signal turns into bits, yet the band still shapes how fast those bits can cross the path. The idea stays the same even if the form changes.
Many new users think only of speed when they hear the term. Speed is part of it, but not the whole story. The band also shapes how much detail the channel can hold at once. A link may seem fast and still fail if the band is too tight for the data form. That is why band and rate always need a close look together.
Factors Influencing Bandwidth Requirements
Many parts shape the band that a link needs. The data type, the user count, the app style, and the need for live flow all play a role. Engineers do not guess. They study use cases and build the link to match them. This keeps the system fair, fast, and stable.
Data Intensity
Data intensity shows how much detail lives in the source. Text has low load, speech has more, and high detail video has a great deal more. A chat app may work with a small band, while a stream app needs much more. The richer the source, the larger the band must be if the system must keep the same clear feel.
Engineers use compression to lower the load, yet compression has limits. If the source has too much motion or too much detail, the code can only cut so much. A site that serves many images or live clips needs extra care in band use. Good planning keeps the link from filling up too fast.
Number of Users
When many people share one network, each user takes part of the total band. This can make the link feel slow at busy times. A campus net, a home Wi Fi link, or a city cell site may face this load each day. The more users join at once, the more the system must split the band with care.
Network teams use control steps to keep traffic fair. They may add access points, shape traffic, or shift load to other bands. This helps each user get a good share. The goal is not only raw speed. The goal is steady service for each active device on the link.
Applications and Services
Not all apps need the same band. A voice call needs less than a video call. A game feed may need low delay, while a cloud file sync may need high burst speed. Each case brings a new load pattern. Engineers must match the band plan to the main use, not to a guess.
App type also affects how bad delay feels. In a chat app, a short wait may not matter much. In a live call, even a small gap can hurt the flow. That means the band plan must also suit delay needs and not just raw data size. Good service starts with a fit between use and channel.
Resolution and Quality
Higher image quality needs more data since each frame carries more detail. A low res clip can look fine on a small screen and use less band. A high res clip holds more fine points and needs a wider path. This is why video apps let users pick quality levels that fit the link and the device.
Audio quality also changes the band need, but the change is smaller. A voice link can use a tight band and still sound clear. A hi fi audio stream needs more room to keep the sound rich. The same rule stays true across media. More detail means more band demand.
Real Time Communication
Real time links need a smooth and steady flow. Voice calls, video calls, and live class feeds all fall in this group. A break in the flow can make speech hard to follow or images choppy. That is why real time use often gets top care in band plans. The channel must keep data moving with low delay and low jitter.
Engineers often add buffers and use smart codes to help these links stay stable. They also watch the path load at busy times. If the band drops too low, the call quality can fall at once. Good real time design protects the user from these drops.
Bandwidth Hungry Technologies
Some tools and services need a lot of band all the time. They carry big media files, live views, or remote work data that must move with no break. These uses have pushed nets to grow fast. They also shape the way firms build and tune links now.
Streaming Services
Streaming apps send audio and video in a steady flow to the user. They do not wait for the full file to land first. That means the link must keep up all through the play time. High quality stream plans need wide band and solid code support. A weak link can cause pauses, low res scenes, or bad sound.
Compression helps, yet the final band need still stays high when the media quality rises. A music app may use less than a film app. A live sport feed may use even more due to fast motion. Users often see this when they switch from low quality to high quality mode.
Video Conferencing
Video conferencing sends voice, face, screen share, and chat data at the same time. This mix needs a stable link with fair band and low delay. If the band dips, the image can freeze and the voice can break. That can make a meeting hard to use.
Remote work and online class use made these tools far more common. Many teams now rely on them each day, so the link must stay ready. A good setup uses clear band rules, smart code, and a net path that can hold peak use without a drop.
Virtual Reality and Augmented Reality
Virtual reality builds a full digital space around the user. It must move large image sets fast and keep delay very low. Even a short lag can break the sense of flow and make the view feel odd. That is why VR needs very strong band and good device sync.
Augmented reality lays digital parts on top of the real world. It must track motion and show fresh data with quick updates. Both VR and AR depend on high band links and sharp data flow. Their growth keeps pushing work on fast wireless links and edge based tools.
Cloud Computing
Cloud tools keep data and apps on far servers. The user then reaches them by a net link. This means upload, download, and sync tasks must use band all day. A weak path can slow work and make files take too long to move. The link must stay both wide and stable.
As more work moves to cloud tools, the need for good band keeps rising. Teams share files, run apps, and back up data from many places. A smart net plan helps each task run with less wait and less waste. That support makes cloud use feel smooth.
Requirement of Bandwidth in Communication System
Communication systems fall into two broad groups based on how they send signals. One group uses wires. The other group uses waves in air. Each group has its own band needs, and each calls for a different kind of design. The right band choice keeps the link clear and useful.
- Wire communication, i.e., where communication is done through wires, e.g., cable T.V., wire telephony, etc.
- Wireless or carrier communication, i.e., where communication is done without wires. In this system, a carrier wave is used.
Wire links send signals through a physical path such as a copper pair or a coax line. These links can hold a set band and can keep noise under control with good shielding. Wireless links send through air with no wire path. They use a carrier wave that holds the data and lets the signal cross wide spaces.
Different services use different ranges in the spectrum. Engineers divide the spectrum into bands so each use can work with less clash. A band map helps radio, nav, TV, and sat links each find a place. This plan keeps users from crowding one another and helps each service run with less loss.
| S.No. | Frequency band | Type of communication |
|---|---|---|
| 1 | Very low frequency (5–30 kHz) | Long distance communication |
| 2 | Low frequency (30–300 kHz) | Radio navigation |
| 3 | Medium frequency (0.3–3 MHz) | Broadcasting marine |
| 4 | High frequency (3–30 MHz) | FM broadcasting television |
| 5 | Ultra high frequency (0.3–3 GHz) | Radar |
| 6 | Super high frequency (3–30 GHz) | Satellite communication |
How Bands Help Service Choice
Lower bands can travel long ways and can bend around some blocks, so they fit wide reach uses. Higher bands can carry more data, yet they may need clear lines and strong gear. Radar and sat links often use these high bands since they need fast return and fine control. The band choice depends on both reach and load.
When engineers pick a band, they look at path loss, noise, and user load. They also check legal rules for the area. A good band plan gives each service room to work and keeps other users safe from clash. This mix of range and order is a core part of system work.

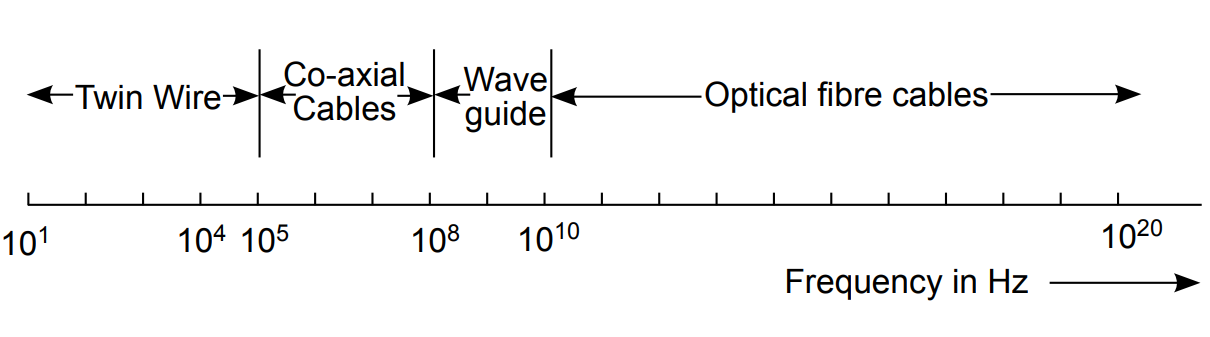

Transmission Medium
A transmission medium is the path that carries the signal from one point to another. Some media use wire, some use hollow guides, and some use light. Each one suits a different band range and use case. The path must match the signal form if the link must stay clean and strong.
Twin wire lines were used in early phone systems and still help in some cases. Coaxial cable gives better shield and can hold higher bands with less harm. Waveguides carry microwave energy in a metal path that suits radar and sat work. Fiber uses light, which opens the door to very high band and long reach.
Twin Wire and Coax
Twin wire line was one of the first forms of guided link. It uses two wires with a set gap and can carry speech well over short and mid paths. Yet it can pick up noise more than newer media. Coax cable solves much of that issue by adding a shield around the core.
Coax supports higher band use and keeps the signal more safe from outside harm. It worked well in cable TV and other old net systems. Many homes and sites still use it in some form. Its role may be smaller now, yet it still serves a range of useful tasks.
Waveguides and Fiber
Waveguides are hollow metal pipes that carry microwave energy. They work well at high bands where wire lines may fail. Radar sets and sat gear often use them since they can move energy with low loss in the right band. Their design is simple in shape, but it serves a very narrow job.
Fiber optic cable uses light to move data. This gives very high band and long reach with low noise. It supports the core of modern internet nets, data halls, and long haul links. Fiber lets huge data loads move with strong speed, and it keeps signal loss low over long runs.
Future Trends and Challenges
Band demand keeps rising as more tools, apps, and smart devices go online. That rise pushes engineers to seek new ways to use spectrum with more care. They need more speed, less delay, and less waste. New net ideas must fit all three needs at once.
5G Technology
5G brings high data rates and low delay to wireless users. It uses a wider set of bands than past mobile systems and can serve many devices at once. To make this work, engineers build smart antennas and band split tools. These tools help the net send more data with less clash.
5G also opens room for new uses like smart cars, live control links, and dense city nets. These uses need strong band, since they send many bits and need quick reply. The tech is still growing, so band rules and site build plans keep getting better too.
Edge Computing
Edge computing moves data work near the source, not far away in one core site. This cuts the need for long trips across the net. When a task can run near the user, the path has less load and less wait. That helps keep the band free for other use.
This model fits smart cameras, factory tools, and fast local apps. It also helps when a device must respond at once. By cutting far off traffic, edge use can ease band stress across the whole system. That makes the net feel more fast and more calm.
Growing Data Demand
Data demand keeps rising with stream use, online games, remote work, and app rich sites. Each new use adds more load to the same links. The result is a need for better band use and better net build. Engineers must plan for growth, not just current use.
To meet this load, teams use new code, better path plans, and more fiber. They also raise spectrum use with smart share tools. The aim is to serve more people with the same or less waste. That is one of the main tests in net design today.
Importance of Efficient Bandwidth Management
Good band control keeps a network steady and fair. It helps each user get the share they need and keeps the system from clogging. A net that uses band well can run more tasks with less wait and less strain. This helps homes firms and public nets alike.
Engineers use traffic rules, data code, and load split plans to make this work. They also size links for peak use so the system can handle busy times. When band is managed well, users see less lag, fewer drops, and better work flow. This is why band care is a core skill in comm design.
Smart Use of Shared Links
Shared links need fair rules so one task does not take all the space. Net tools can set use caps, pick load paths, and shift traffic to less busy bands. These steps help each call, file, and stream get what it needs. Shared use works best when control is clear and fast.
A home net can show this in a simple way. A person may stream a show, join a call, and back up files at the same time. A good router can split the band so each task still works. Without such care, one task may starve the rest.
Compression and Coding
Compression cuts extra data so the same message can move with less band. This helps videos, images, and files travel more light. Coding adds fault fix bits that can protect the data from noise. These tools do not remove the need for band, yet they make the best use of what is there.
Engineers balance save and quality when they pick a code. Too much cut can hurt sound or image. Too little cut can waste band. The best choice keeps the user view clear while keeping the link lean. That balance is at the heart of good band work.
Practical Ways to Think About Bandwidth
A new learner can study band by looking at the task first. A voice note needs less than a live class. A live class needs less than a 4K stream. A file backup may need burst band at one time and then none after that. This view helps match tools to tasks in a clear and calm way.
It also helps to ask three simple questions. How much detail must move? How fast must it move? How many users share the link? The answers guide the band plan. A smart choice keeps the user happy and the net stable. This habit is very useful in both study and work.
Room to Grow
Good band plans leave room for growth. A net that fits only today may fail when users rise or apps change. Engineers try to build some spare room into the design. That spare room makes later change less hard. It can save time and money when demand grows.
Spare room also helps during sudden load. A news event, class meet, or live show can push many users onto one path at once. A well planned link can absorb part of that load. This keeps the service from dropping at the worst time.
Bandwidth in Daily Life
Many people use bandwidth each day without thinking about the term. A short voice call on a mobile phone needs a modest share. A school class on video may need even more because each person sends and receives live data. These cases shape use.
Home links make this easy to see. When one person plays music, another joins a call, and a third uploads a file, the router must split the band. If the link is well planned, all tasks can still work with fair speed. This simple scene helps new learners connect theory with real use at home.
Why User Feel Matters
Users often judge a net by feel, not by raw numbers. A site can have a high rate on paper and still feel poor if the band is used badly. Long waits, frozen screens, and broken voice all shape user trust. That is why engineers look at delay, load, and code, not just top speed. Good band use makes a service feel smooth, even when many people share the same path.
Trade Offs in Bandwidth Design
Design work always brings trade offs. A wide band can move more data, yet it may cost more to build and may need better gear. A tight band can save spectrum, yet it can limit quality or speed. Engineers weigh these points before they choose a path. They try to find the best fit for cost, reach, power use, and user need.
Another trade off comes from noise. Some bands run near busy sources and need more care to stay clean. Shielding, filters, and smart layout can help, yet each fix adds cost or size. The best design is not the one with the largest band at all times. It is the one that gives the right mix of band, cost, and trust.
Cost and Scale
Small nets and huge public nets do not solve the same problem. A home link may only need enough room for a few tasks. A city mobile net may need far more, since many users share it all day. Scale changes the design. It changes the band plan, the gear choice, and the control system used to hold the load.
Cost also shapes choice. Fiber gives huge band, but it takes money and work to place. Wireless links can be faster to set up in some areas, yet they still need clean spectrum and good site work. Engineers try to use the best medium that fits the job and the budget. That balance keeps systems practical.
How Engineers Study Bandwidth
Engineers do not rely on guesswork when they size a channel. They test the source signal, the path, and the noise level. They may use math models, lab tools, and field tests to see how much band a link can hold. This work shows the real limits of the system and helps avoid weak design.
They also study how a signal changes with time. Fast changes need more band than slow changes. A sharp edge in a signal can spread wide in the spectrum. That is why simple plots of time and spectrum both matter. A learner who sees this link can better understand why some signals need a wide path while others fit in a narrow one.
Testing and Measurement
Tools such as spectrum analyzers, signal generators, and network test gear help engineers measure band use. These tools show the live shape of the signal and the noise around it. They help spot waste, clash, and drop points. With clear data in hand, engineers can tune filters, move channels, or change code for a better result.
Tips for Students and New Readers
Students can build a strong base by linking the idea of bandwidth with daily tasks. Think of speech, music, film, and file sync as four levels of data load. Speech sits low, music sits a bit higher, film sits much higher, and live file sync can jump up and down. This view makes the term less hard to learn.
It also helps to learn the key parts of the system step by step. Start with the source signal. Then study the path. After that, look at noise and rate. Finish with the user need. This order makes the subject clear and keeps the ideas in place. A slow and steady path often works best for first time study.
Reading the Topic Well
When reading about bandwidth, it helps to ask what the author means by the term in that case. Some texts use it for channel span. Some use it for data speed. Some use it for both at once. The meaning can shift with context, so a careful reader checks the line around it before drawing a firm view.
Future of Bandwidth Use
The future of communication will keep asking more from the same spectrum. More homes use smart tools. More firms use cloud apps. More public services run on live data. This growth means engineers must keep finding new ways to serve more users with less waste. They will rely on better codes, smart share rules, and more fiber links.
New radio plans also aim to reuse band in a more sharp way. They can split space and time so more links can live in one zone. Edge tools, local storage, and smarter chips will also help. All these steps work toward one aim: move more data with less delay and less crowding on the same path.
What Will Stay Important
Even with new tech, the basic idea will stay the same. A signal needs room to move. A channel has limits. A good design gives the signal just the room it needs and no more. This simple rule has lasted through old phone nets, radio nets, fiber nets, and modern cloud links. It will still guide future work.
That is why learners should treat bandwidth as a core idea, not a side note. It connects theory, hardware, and user care. It also links old and new systems in one clear thread. Once this idea makes sense, many other parts of communication become easier to read and use.
Conclusion
Bandwidth in communication system remains a core idea in every modern link, from a simple phone call to a high res stream and a fast cloud app. It shapes how much data a channel can carry, how clear the signal feels, and how well the system can serve many users at once. When engineers match the band to the task, they build links that stay fast, steady, and useful for real life needs. As new tools and new net forms keep growing, this idea will keep guiding the way people send and share information across the world.
