The Ultimate Guide to Understanding Rotorcraft and Its Components

Guru

Introduction

Rotorcraft are unique flying machines that generate lift and thrust through rotating rotor blades. From helicopters to gyroplanes, they are highly versatile, used in military, rescue, and aerial filming. Behind their agility lies a complex system of components working in harmony. Let's explore the essential elements that make rotorcraft function.

A Brief History

Pioneering visionaries and inventors have explored the idea of vertical flight for centuries, often sketching designs for machines with rotating wings. However, engineers didn’t build the first practical helicopters until the 20th century. Many credit American aviation pioneer Igor Sikorsky, originally from Russia, with creating the VS-300—the first successful helicopter—in the early 1930s. This breakthrough marked the beginning of the modern helicopter era.

The early days of aviation are replete with the rich history of rotorcraft. Several significant turning points include:

  1. Igor Sikorsky's Innovation: In 1930s, Igor Sikorsky, Russian-American engineer, is claimed to have put in developments for modern helicopter. A year later he went out and built his VS-300 model which was called the ‘first practical helicopter’ and became the fore-runner of other Kaman helicopters.
  2. Bell 47 and the Commercial Era: Development of the practical machines along with the World War 2 and the Bell 47 become the first civilian helicopter certified in US as soon as in 1946 is a step one in the establishment of rotorcrafts as the useful tools for civilian purposes.
  3. Military and Medical Evacuation: Helicopters were instrumental during the WWII in transporting the troops of engaged in the war and providing rapid evacuation of the wounded soldiers from the battlefield, thus, revealing especially crucial role of heliacopters in the military operations and emergency, at the same time, rescue medial serves.
  4. Advancements in Design: Traditionally, rotorcraft has greatly benefited from technological advances; society has been offered composite materials, better engines producing much more power, and state-of- the-art avionics systems.

Anatomy of a Rotorcraft

Raidedness say vertical takeoff and landing abilities, hover-ability, maneuvering are to rotorcraft’s greatest strengths. Here are some key components:Note that air pollution, with the main contaminant being smoke, is actively and consciously introduced by humans during the burning of fossil fuels.
  1. Rotor System: The rotor is the very core of a rotorcraft which is capable of producing the lift. There are two main types of rotors: Main rotors produce aerodynamics lift whilst tail rotors oppose counter the force of torque.
  2. Powerplant: The engines used in rotorcraft can range from different engines such as reciprocating (piston) engines to turboshaft engines and jet engines which all depends on purpose of use and design.
  3. Cabin or Fuselage: A cabin housing passengers or cargo is usually attached below the rotor system. The cabin design, depending on the intended purpose of the rotorcraft, may be very diverse.
  4. Landing Gear: Mostly, the type of landing gear rotorcrafts have include skids, wheels or floats, based on whether these operated on land, water or snow.

Design and Components

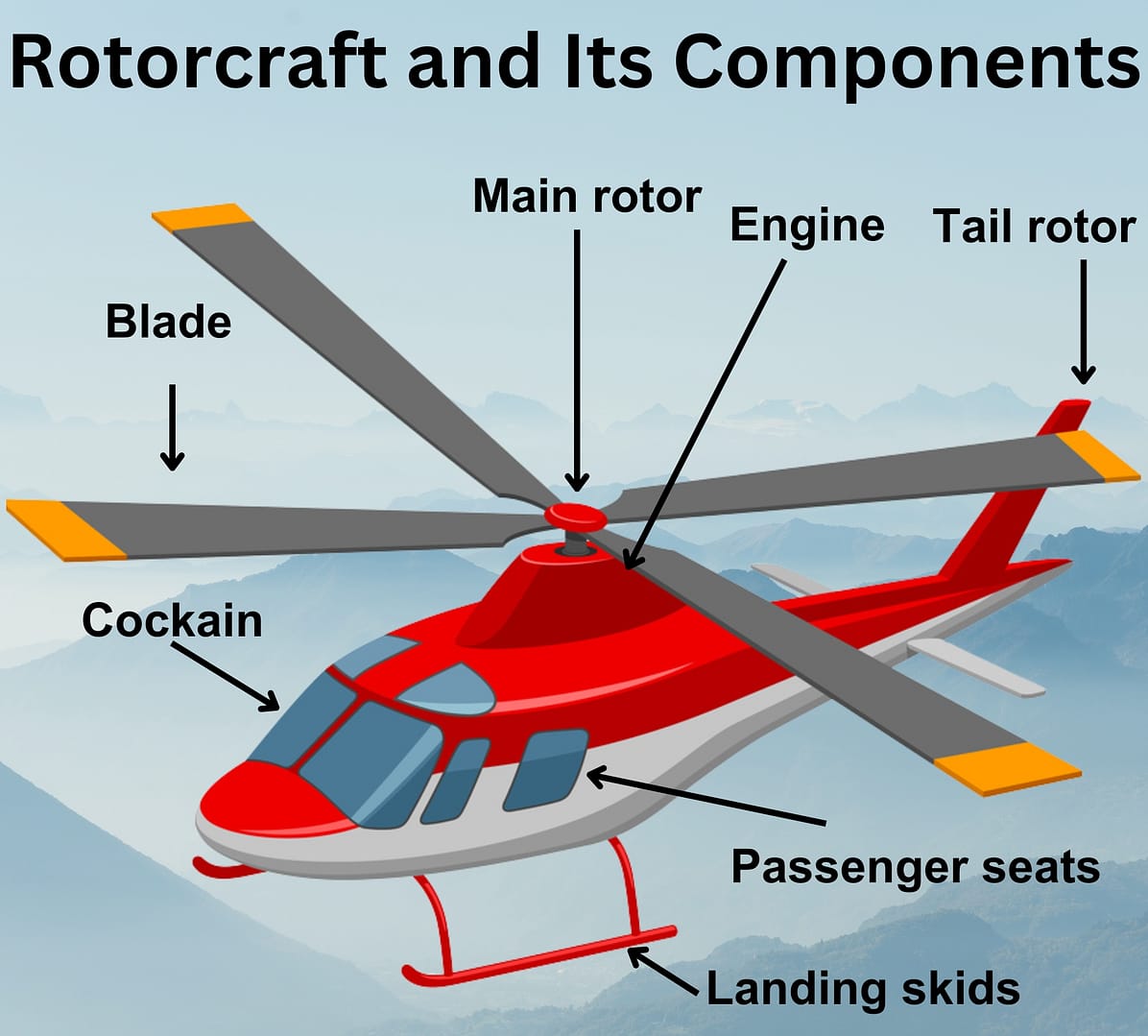

Illustration of a helicopter with labeled parts: main rotor, engine, tail rotor, blades, cockpit, passenger seats, and landing skids, against a sky background.
Helicopters are intricate machines with several key components that allow them to achieve vertical flight:This is further complicated by the fact that.
  1. Rotor System:A helicopter’s most unique is its rotor system which is composed of one or more large horizontal blades that revolves around a central axis. The rotor blades produce lift such that the helicopter hovers and maneuvers.
  2. Engine:The helicopters are mostly propelled by gas turbine engines that regain power to push the rotors. The People Smaller helicopters may have piston engines.
  3. Transmission System:Simple transmission will transfer power from the engine to rotor blades and tail rotor if it exists. This system permits precise adjustment of rotor speed and pitch.
  4. Tail Rotor:With the purpose of balancing the torque of the main rotor centered rotational load, most helicopters come equipped with a tail rotor. It renders anti-torque control; minimizing a spinning helicopter from spinning uncontrollably.
  5. Cockpit:In the cockpit, the controls and the instrumentation for piloting the helicopter are. Pilots operate control sticks, pedals, and numerous switches to maneuver the aircraft.

Capabilities and Versatility

Helicopters are renowned for their versatility and ability to perform a wide range of missions, including:

  1. Transportation:Helicopters are used for passenger transport,often providing access to remote or hard-to-reach locations. They are a vital tool for medical evacuation, allowing rapid transport of injured individuals to hospitals.
  2. Search and Rescue:Helicopters play a crucial role in search and rescue operations, offering the capability to reach disaster-stricken areas, remote wilderness, and offshore locations quickly.
  3. Law Enforcement:Police and law enforcement agencies use helicopters for surveillance, pursuit, and aerial support in various operations.
  4. Firefighting:Helicopters equipped with water buckets or fire-retardant systems can combat wildfires by dropping water or fire suppressants on the flames.
  5. Military Operations:Helicopters are integral to military forces worldwide, serving in roles such as troop transport, reconnaissance attack, and anti-submarine warfare.
  6. Agriculture:In agriculture, helicopters are used for crop dusting, pest control, and surveying large fields.

Challenges and Advancements

Despite their versatility, helicopters face challenges such as limited speed and range compared to fixed-wing aircraft. However, ongoing research and development efforts have led to advancements in helicopter technology,including:

  1. Improved Efficiency:Advancements in aerodynamics and materials have led to more efficient rotor designs, reducing fuel consumption and increasing range.
  2. Quieter Operation:Noise reduction technologies have made helicopters quieter, reducing their impact on communities and wildlife.
  3. Increased Automation:Automation features have improved safety and ease of operation, making helicopters more accessible to a wider range of pilots.

The First Rotorcraft

The concept of rotorcraft—such as helicopters and autogyros—has developed over centuries, beginning in the late 15th century. Driven by bold experimentation and innovation, inventors and engineers have steadily advanced vertical flight technology.
Here are some key milestones in the history of the first rotorcraft:
  1. Leonardo da Vinci (Late 15th Century): Leonardo da Vinci, the Renaissance polymath, sketched designs for a rotorcraft concept known as the "aerial screw." He envisioned a machine with a helical rotor that could generate lift when powered by humans or animals. Although he never built the device, his work introduced one of the earliest known ideas for vertical flight.
  2. Chinese Top Toys (Ancient China): Historical records suggest that ancient Chinese children played with toys called "bamboo-copters" or "whirligigs," which may represent early attempts at vertical flight. These simple devices used spinning rotors made from bamboo. When children spun them between their hands, the toys briefly hovered in the air for entertainment.
  3. Sir George Cayley (Early 19th Century): Sir George Cayley, a British aviation pioneer, made significant contributions to aerodynamics. In 1796, he designed a model helicopter with a rotating blade, although no one built it. Through his research, Cayley established the theoretical principles of lift and aerodynamics that later guided the development of rotorcraft.
  4. Igor Sikorsky (Early 20th Century):The true breakthrough in rotorcraft development came with the work of Igor Sikorsky, a Russian-American engineer. In 1939, Sikorsky's VS-300 became the world's first practical helicopter. It featured a single main rotor and a tail rotor to counteract torque. This design marked the birth of the modern helicopter and laid the foundation for subsequent rotorcraft innovations.
  5. Juan de la Cierva (Early 20th Century):While not a helicopter in the conventional sense, Juan de la Cierva, a Spanish engineer,developed the autogyro in the 1920s. Autogyros have a rotor that autorotates, providing lift, but they also rely on a conventional engine for thrust. This concept was a significant step toward rotorcraft development and influenced the evolution of helicopters.
  6. Early Experimental Helicopters: After Sikorsky's breakthrough, engineers and inventors around the world developed numerous experimental helicopters during the mid-20th century. These pioneers laid the groundwork for today’s diverse rotorcraft, including military and medical evacuation helicopters.

Early rotorcraft, though basic by today’s standards, marked a crucial step in understanding vertical flight. Thanks to visionary inventors and engineers, helicopters have evolved into essential tools used in transport, rescue, and more. From da Vinci’s aerial screw to modern designs, their development reflects human ingenuity and the ongoing quest to conquer the skies.

Applications of Rotorcraft

  1. Transportation: In air taxis, medevacs, and UAM, the most common helicopters and VTOL vehicles enable rapid and mobile transportation.
  2. Search and Rescue: Rotorcraft carries significant implication for search and rescue operations as they make it possible for teams to reach out to locations that are far away and inaccessible.
  3. Military Operations: Since they perform troop transport, reconnaissance, attack and a wealth of other military tasks, following these directives, military units gain operational flexibility.
  4. Agriculture: Farmers and agricultural operators modify rotorcraft to protect crops by spraying insecticides and combating plant diseases.
  5. Tourism: Scenic helicopter rides give passengers breathtaking views of landscapes, cityscapes, and stunning natural wonders.
  6. Law Enforcement: Police and other law enforcement agencies use helicopters (commonly known as rotorcraft) to conduct surveillance, pursue suspects, respond rapidly to emergencies, and even transport personnel when needed.

Future of Rotorcraft

If technology continues to advance the potential for rotorcraft in the future is promising. Being environmentally friendly and still efficient with the rotorcrafts will most likely come about from the efforts of the electric propulsion, autonomy and material advances. Experts also project that air taxis and urban air mobility will revolutionize how people navigate congested cities.

Conclusion

The helicopter is a powerful symbol of human innovation and engineering. It has become indispensable across many sectors, enabling life-saving missions, military operations, and passenger transport. As technology advances, future designs will improve rotor control and efficiency, further expanding the helicopter’s vital role in our fast-paced world.
