Types of chips used in metal cutting

Introduction

Types of chips used in metal cutting play a major role in machining science because they show how a smart material like metal behaves under cutting forces and heat during removal processes. Engineers observe chip shape, size, and color to judge cutting performance and tool condition. Every machining task such as turning, drilling, or milling produces chips as the tool removes material from the workpiece. The chip reflects stress, strain, and heat that develop at the cutting zone. Good chip control helps achieve smooth surfaces and correct size in parts. Poor chip control can damage tools and reduce safety. Understanding chip behavior helps engineers improve machining efficiency, reduce wear, and maintain stable operations in modern industries.

Types of chips used in metal cutting

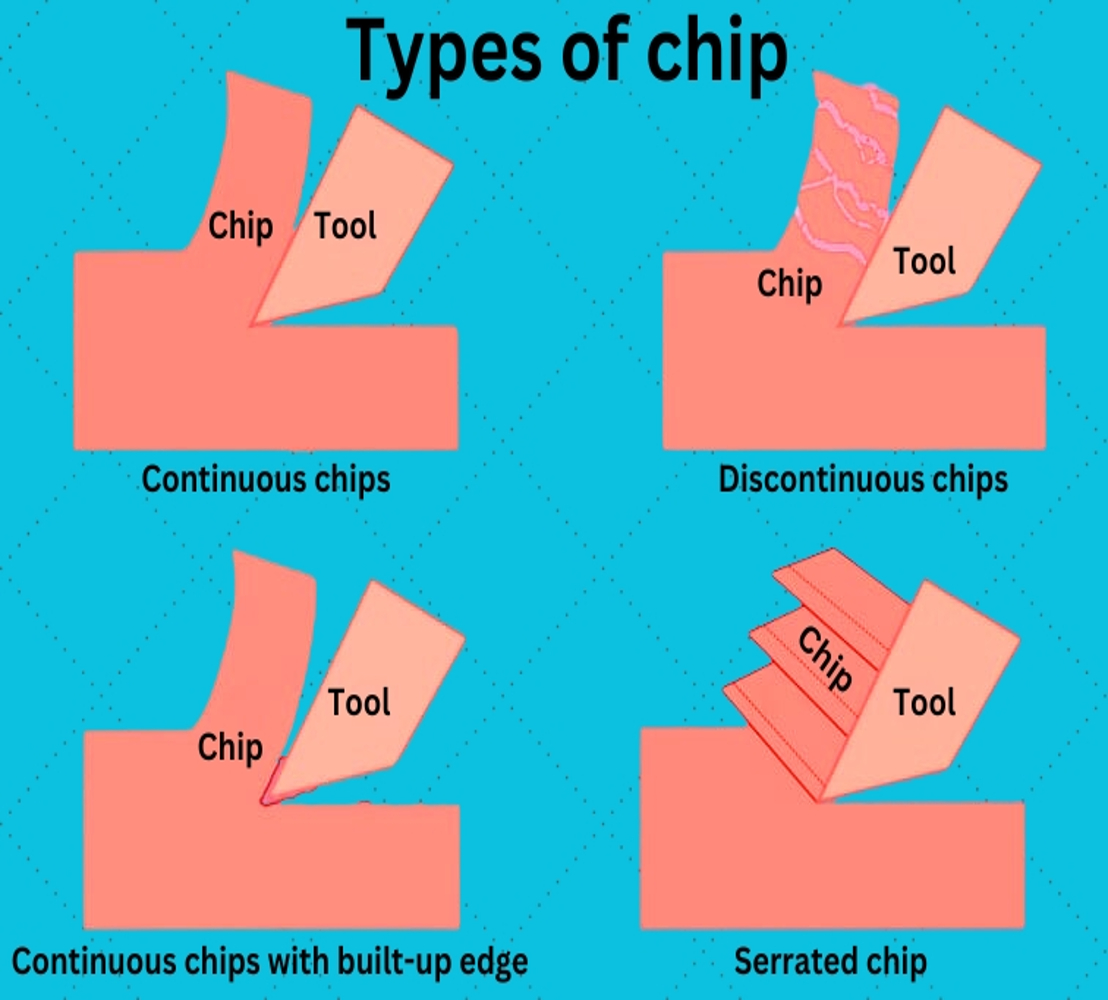

Engineers classify chips based on how the material deforms and separates during machining operations. The cutting environment has a strong effect on chip type and behavior. Material strength, ductility, cutting speed, rake angle, and lubrication all influence chip formation. Each factor changes how the metal flows along the tool face. Proper selection of these parameters helps control chip shape and size. Controlled chip formation leads to better tool life and smoother surface finish. Poor settings may cause long chips, tool wear, or unstable cutting. Engineers study chip forms to understand the cutting process clearly. This knowledge helps improve production quality and safety in machining.

• Continuous chip
• Discontinuous chip
• Continuous chip with built up edge
• Serrated chip

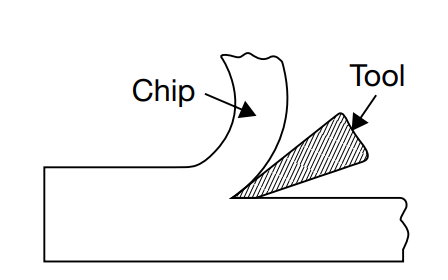

Continuous Chip

Continuous chips appear as long ribbon like strips that flow smoothly from the cutting zone during machining. These chips form when the material undergoes plastic deformation without breaking. Ductile materials such as aluminum, copper, and mild steel often produce this type of chip. The deformation occurs along a well defined shear plane where layers of metal slide over each other. This smooth flow indicates stable cutting conditions. Continuous chips often lead to a high quality surface finish because the material removal is uniform. Engineers prefer this chip type when precision and smoothness are important in final parts.

Stable chip flow keeps cutting forces nearly constant during machining operations. This stability reduces vibration and improves tool performance. Continuous chips also help maintain dimensional accuracy because the cutting action remains steady. Though these chips are useful, they may wrap around the tool or workpiece during cutting. This wrapping can create safety issues and affect machining efficiency. Engineers solve this problem by using chip breaker tools. These tools break long chips into smaller pieces that are easier to handle. Proper chip control ensures smooth machining and safe working conditions.

Conditions for Continuous Chip Formation

Continuous chips form under specific machining conditions that promote smooth deformation of the material. High cutting speed allows the material to flow easily along the shear plane. A large rake angle reduces cutting resistance and supports smooth chip flow. Small uncut chip thickness also helps in forming continuous chips because thinner layers shear easily. Proper use of cutting fluid reduces friction between the tool and chip. Reduced friction improves chip movement and prevents sticking. Engineers select these conditions to achieve better machining performance and longer tool life.

1. Machining of ductile materials
2. Small undercut thickness
3. High cutting speed
4. Large rake angle of the tool
5. Suitable cutting fluids

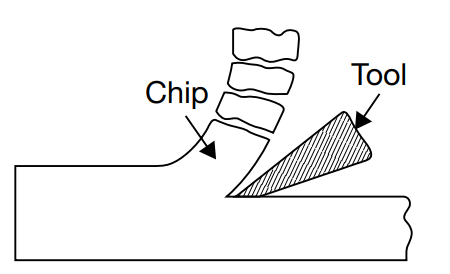

Discontinuous Chip

Discontinuous chips break into small segments during machining instead of forming a continuous strip. These chips form when the material fractures rather than deforming smoothly. Brittle materials such as cast iron, some alloys, and hard steels often produce this type of chip. The cutting process involves repeated separation of small pieces from the workpiece. This results in fragmented chips that appear as small particles or short segments. These chips fall away easily from the cutting area and do not wrap around tools.

Low cutting speed often increases the chance of discontinuous chip formation because it promotes brittle behavior in materials. Small rake angles increase cutting resistance, which leads to fracture instead of smooth deformation. Large chip thickness also requires higher force, which encourages breaking of the material. Discontinuous chips help in easy chip removal and reduce entanglement risk. This makes them useful in certain machining conditions where safety is important. Engineers may choose such conditions when working with brittle materials or when chip control is a priority.

Conditions for Discontinuous Chip Formation

Discontinuous chips form under conditions that promote fracture of the material. Brittle materials tend to break rather than deform, which leads to segmented chips. Low cutting speed reduces temperature and keeps the material hard. Small rake angle increases resistance at the cutting zone. Large uncut chip thickness raises cutting force and promotes breakage. Engineers use these conditions when working with materials that do not allow smooth plastic deformation.

1. Machining of brittle work materials
2. Low cutting speed
3. Small rake angle
4. Large uncut chip thickness

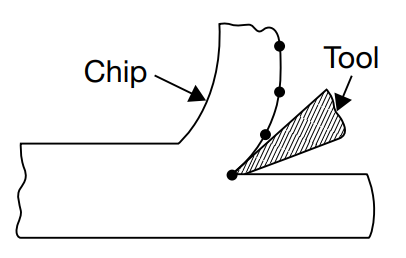

Continuous Chip with Built Up Edge

This chip type forms when a portion of the work material sticks to the cutting tool edge during machining. The stuck material creates a temporary layer known as built up edge. This layer changes the effective geometry of the tool and affects the cutting process. The built up edge forms and breaks repeatedly during machining. When it breaks, fragments may remain on the workpiece surface and reduce finish quality. This condition is common when machining ductile materials under poor lubrication.

Low cutting speed increases the chance of built up edge formation because it allows more time for adhesion between tool and chip. High friction between surfaces also promotes sticking. Large chip thickness increases pressure at the tool face, which supports bonding of material. Small rake angle increases contact area between chip and tool. This increases friction and encourages built up edge formation. Engineers use proper cutting fluid to reduce friction and prevent this issue. Better lubrication helps maintain smooth chip flow and improves surface quality.

Conditions for Built Up Edge Formation

Built up edge forms when adhesion between tool and chip becomes strong due to pressure and friction. Low rake angle increases contact area and friction. Large uncut chip thickness raises pressure at the tool interface. Poor lubrication also increases adhesion. Engineers adjust cutting conditions to avoid built up edge and maintain smooth cutting.

1. Large friction or stronger adhesion between chips and tool face
2. Low rake angle
3. Large uncut chip thickness

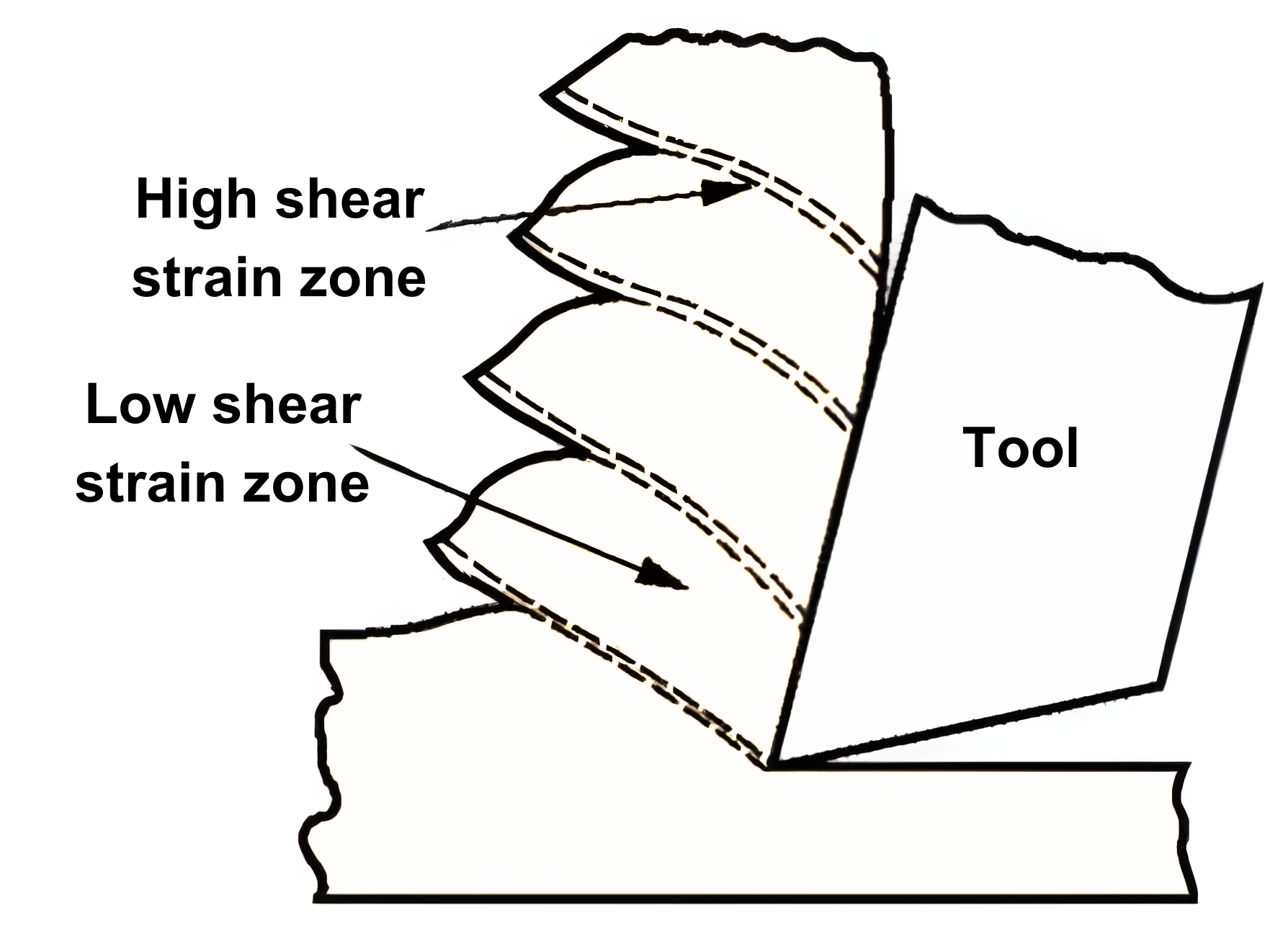

Serrated Chip

Serrated chips show a saw tooth pattern along their edges and appear partly continuous and partly segmented. These chips form in materials that show both plastic deformation and localized shear failure. High strength alloys such as titanium and nickel based materials often produce serrated chips. The chip forms in segments that join together, creating a saw like shape. This pattern forms due to repeated shear instability in the cutting zone.

High temperature near the tool and chip interface softens parts of the material and allows localized deformation. Each segment forms when stress reaches a limit and then releases. This cycle repeats during cutting, which creates the serrated pattern. These chips cause variation in cutting force because each segment forms at a different time. This variation may affect tool life and surface quality. Engineers control cutting parameters and use coated tools to manage this behavior and reduce heat.

Conditions for Serrated Chip Formation

Serrated chips form mainly due to high temperature at the cutting zone. Heat softens localized areas of the material and allows segmented deformation. High cutting speed increases temperature. Difficult to cut materials also promote this behavior. Engineers adjust speed, feed, and tool coating to control chip formation.

1. High temperature at contact surface between cutting tool and workpiece

Conclusion

Types of chips used in metal cutting provide important information about machining conditions and material behavior under stress. Engineers study chip formation to select correct cutting parameters and improve tool life. Continuous chips show stable cutting, while discontinuous chips indicate material fracture. Built up edge chips reveal adhesion problems at the tool interface, and serrated chips appear in high temperature conditions. Proper chip control improves safety, surface finish, and production efficiency. Understanding types of chips used in metal cutting helps engineers design better machining processes and achieve consistent results in manufacturing systems.
